Receivers

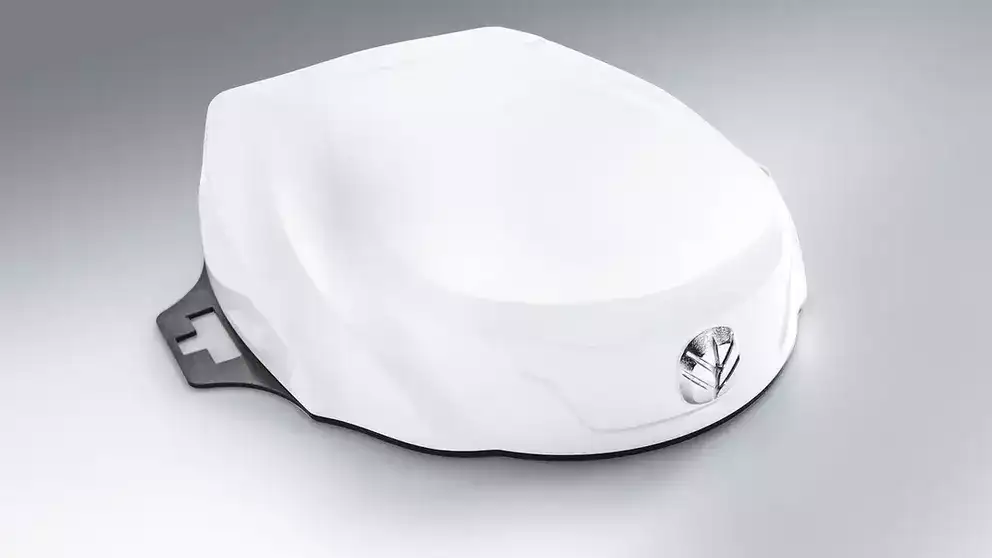

AG-25 Antenna
The AG 25 Antenna compatible with the full range of correction signals, including GPS, GLONASS OmniSTAR and RTK, where a RTK radio is used.
This antenna can be combined with the FM-750, FM-1000 and XCN-2050™ monitors to be utilized for auto guidance and precision farming functions.

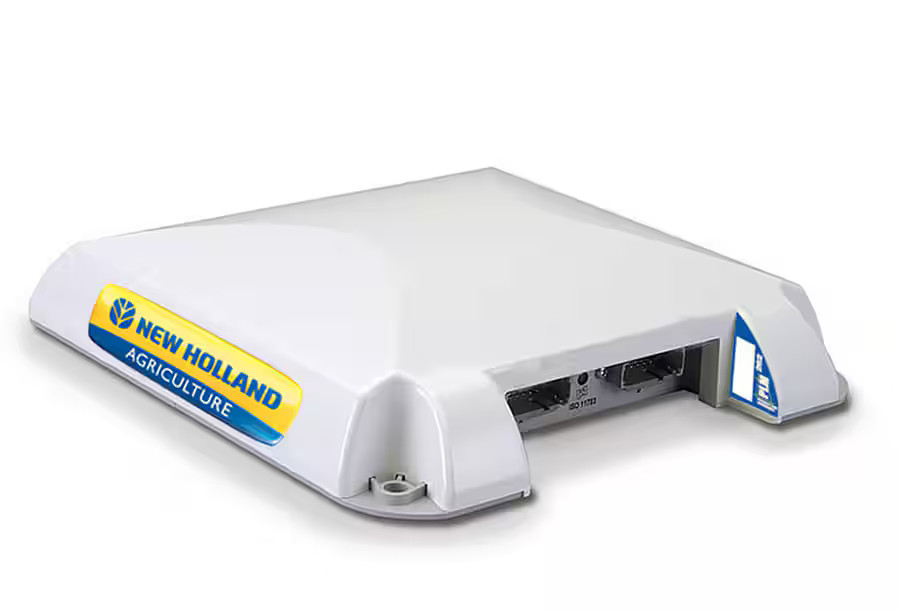

NH 372 Receiver
The NH 372 Receiver is the top-of-the-line receiver compatible with both DGPS and GLONASS signals and is fully compatible with WAAS, OmniSTAR, or RTK correction. For RTK applications, a slim-profile radio is mounted underneath the receiver. This receiver can easily be transferred from tractor to tractor or even to your combine or forager.
This receiver can be combined with the IntelliView III & IV monitors, and can be utilized for IntelliSteer and IntelliSteer LITE guidance as well as precision farming functions.
NH 162 Receiver
The NH 162 standard receiver can be used for Yield or Field Mapping. The receiver can receive EGNOS correction signals and is a differential GPS receiver.
PLM Cygnus-A
The PLM Cygnus-A dual frequency receiver is a mid-range upgrade-able receiver to support applications such as Yield Mapping and IntelliSteer LITE.
- This receiver utilizes GPS and GLONASS satellites with its position smoothing feature for a reliability.
- Lower Cost Receiver Option for IntelliSteer LITE (Not compatible with Integrated IntelliSteer guidance).
- Stand- Alone Application for 3rd party displays and/or Applications, with NMEA export.
- RTK Fill is an RTK fallback service that allows continued operation of the Cyngnus-A receiver for up to 20 minutes when the RTK corrections are disrupted due to a dropped cellular connection or other source of interruption.
NAV 900
The NAV 900 has a built in Antenna, Receiver, and Terrain Compensation, with optional radio. Improve convergence time with a full range of correction signals including GPS, GLONASS, Galileo, Beidou, and QZSS constellations. Built in WiFi and Bluetooth for tethering, and device connections. Simplified setup with fewer components allows for an easier installation process and increased compatibility with CAN based steering. The NAV 900 can be combined with the XCN-1050 for auto guidance and precision farming functions.
